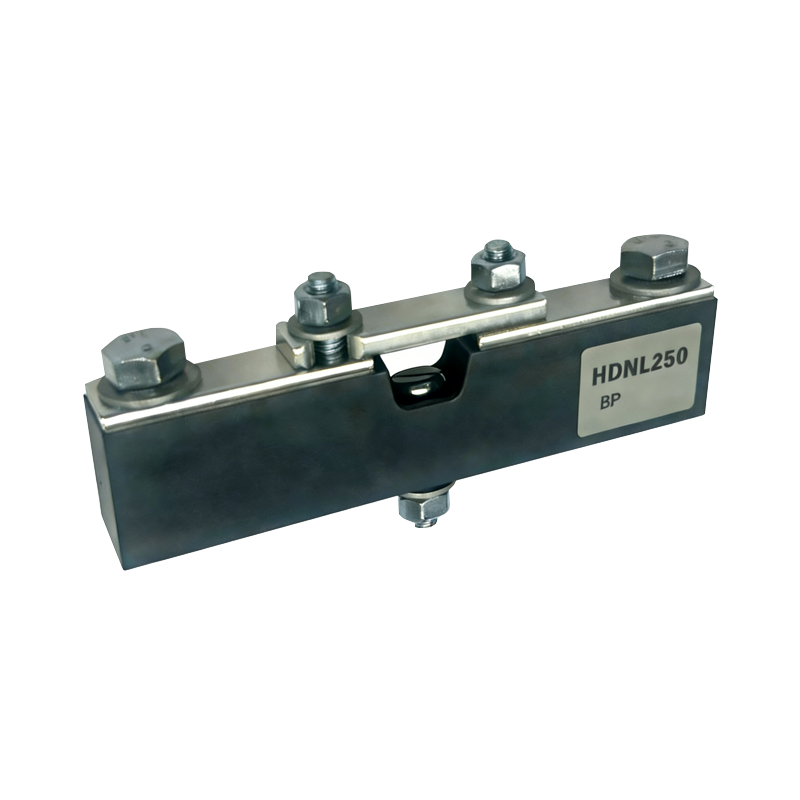

大电流零线端子

Application:
Ideal choice for distribution board distribution
Specially designed for installations that require a high rated current of 250A
Features:
1. Rated current 250A;

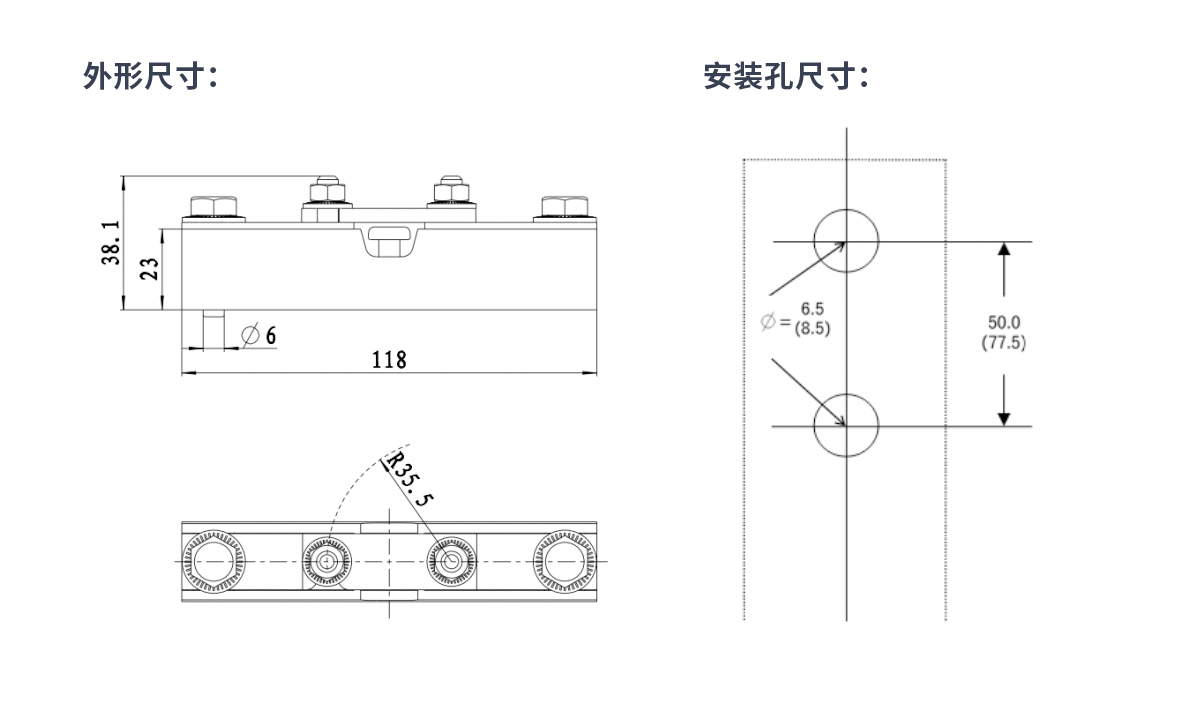

2. The neutral link design is compact, with a fixed center of only 35.5 millimeters, making it easy to install in most distribution panels;
3. Compact design, installation hole diameter of 6.5 millimeters, center distance of 50mm;
4. The main body of the product is gray (RAL7016), flame retardant UL 94-V0 level;
5. Material of current carrying component: T2 copper;
6. The product complies with the RoHS environmental directive.
